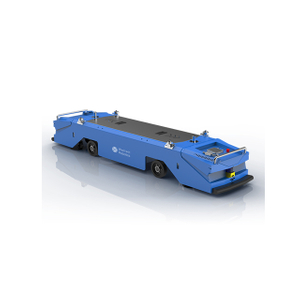

Basic parameters | Name | Latent Towing Mobile Robot-WD500QR |
Model | WD500QR | |
Maximum payload (kg) | 500KG | |
Self-weight (kg) | 350(±10KG) | |
Dimension (L * w * h) mm | 1050 * 580 * 300mm | |
Navigation mode | QR Code /LiDAR SLAM Navigation | |
(optional) | ||
performance | Driving mode | Servo motor / differential drive |
Form of motion | Under drive traction | |
No load maximum speed | 1m/s | |
Full load operation speed | 0.8m/s | |
Orientation accuracy | ±1° | |
Battery | Driving voltage (V) | DC48V |
Battery capacity | 30AH | |
Battery type | Lithium iron phosphate | |
Battery life | 2000 cycles, capacity ≥ 80% | |
Endurance time | 6h | |
Charging time | ≤1.5h | |
Charging mode (optional) | Off line charging / automatic charging | |
Safety protection | Anti collision mode | Front and rear lidar obstacle avoidance |
Front and rear anti-crash strips to avoid obstacles | ||
Emergency stop | Front and rear emergency stop buttons | |
Communication mode | 5G/WIFI | |
Protection degree | IP20 | |
Alarm system | Sound-light alarm |
