| Quantity: | |
|---|---|

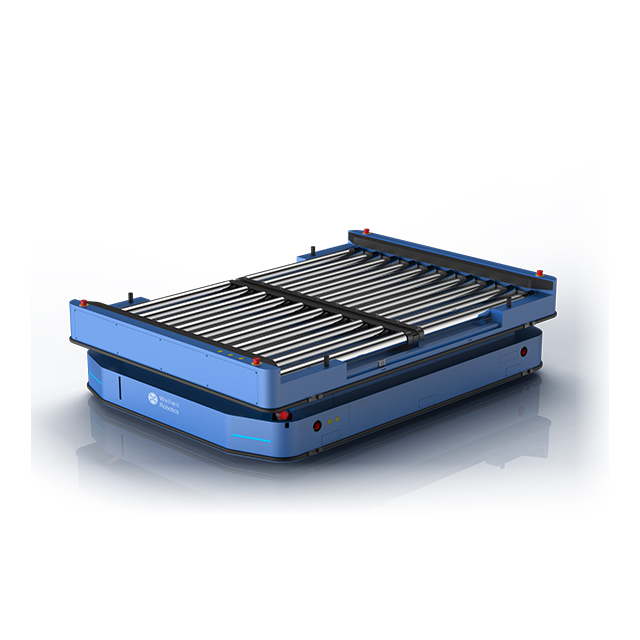

Basic parameters | Name | Roller Conveyor Robot-WR1000DS |
Navigation mode | LiDAR SLAM Navigation | |
Drive mode | Double steering wheel drive (omnidirectional) | |
Dimension(L*W*H) | 2694*1932*635mm （with bumper strip） | |
Weight （with batteries） | 980KG (±5KG） | |
Maximum payload | 1000KG | |
Network | Ethernet / Wi-Fi 802.11 a/b/g/n/ac | |
Ambient temperature and humidity range | Temperature : 0~50℃ / Humidity: 10~90%, No compression condensation | |
IP rating [1] | IP20 | |
Performance parameters | Passability (slope/step/gap) [2] | ≤5%/5mm/30mm |
Navigation position accuracy [3] | ±10mm | |
Navigation angle accuracy [3] | ±1° | |
Operation speed (Adjustable) | ≤1.2m/s | |
Battery parameters | Battery capacity | 48V/40Ah Lithium iron phosphate |
Endurance time | 6-8h | |
Charging time(10-80%) | ≤1.5h | |
Charging mode | Manual/Automatic charging | |
Battery life | 1500 cycles，capacity＞80% | |
Safety protection | LiDAR SLAM number | 2 |
Load detection | × | |
Emergency stop button | √ | |
Speaker | √ | |
Ambient light | √ | |
Bumper strip | √ | |
Functions | Basic functions [4] | √ |
Wi-Fi roaming | √ | |
Automatic charging | √ | |
Follow-up function | × | |
QR code accurate positioning | optional |
[1]. Designed for indoor transport, not recommended for outdoor environments.
[2]. Road surface is smooth, clean and without significant undulations. Slope 5% = arctan(0.05) ≈ 2.8°. The robot may not stop or turn at ramps, steps, or gaps, but may only pass quickly perpendicular to them.
[3]. Navigation accuracy usually refers to the repeated accuracy of the robot navigation to the target site. When the environment scanned by the robot LiDAR is relatively stable (change rate <30%), the repeated accuracy of the robot navigation from the fixed direction to the target site can reach the expected value. When the robot runs along the virtual path, it will try to fit the path, but it does not guarantee repeatability. That is, the robot can guarantee the accuracy of the point, without guaranteeing the accuracy of the navigation path. The minimum site spacing supported by the robot is 1cm.
[4]. The basic functions include map editing, model editing, positioning and navigation, basic motion model (differential), API interface, etc.
