Structure Description | Name | Description |
Mesa size | Ø220 | |
Adjustment range | 0-60 | |
Transmission mode | Gear Transmission | |
Transmission ratio | 117 | |
Carrying form | Slewing support | |
Stepping motor | None | |
Servo motor | 400W | |
Main material | Aluminum alloy | |
Central load | 1000KG | |
Performance Parameter | Jacking assembly installation position 1[1] | 6个 M8 screw holes |
Jacking assembly installation position 2[2] | 6个φ9 through-holes | |
Maximum load | 1000KG | |
dead-weight | 30KG(±2KG) | |
The middle rotary support reserved installation hole position [3] | 8EA M6 screw holes | |
Follow function [4] | 8EA 8-M8EQS | |
Jacking assembly top plate reserved hole position [5] | 2 groups of M6 threaded holes | |
Accuracy Description | Allowable speed rpm | 3000 |
Repeatable positioning accuracy (theory) | ±1° |
[1]. Installation of bolts from the bottom up.
[2].The bolt is not convenient to install from the bottom up.

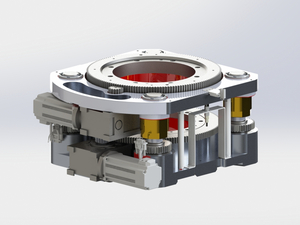

[3]. There is a cylindrical space of φ150 in the middle of the jacking assembly, and 8 M6 threaded holes are reserved in the middle of the slewing support. If you want to add QR code camera or other sensors, you can use the bracket to fix them on the 8 M6 threaded holes reserved for the rotary support, and the specific dimension is shown as picture 1.
Structure Description | Name | Description |
Mesa size | Ø220 | |
Adjustment range | 0-60 | |
Transmission mode | Gear Transmission | |
Transmission ratio | 117 | |
Carrying form | Slewing support | |
Stepping motor | None | |
Servo motor | 400W | |
Main material | Aluminum alloy | |
Central load | 1000KG | |
Performance Parameter | Jacking assembly installation position 1[1] | 6个 M8 screw holes |
Jacking assembly installation position 2[2] | 6个φ9 through-holes | |
Maximum load | 1000KG | |
dead-weight | 30KG(±2KG) | |
The middle rotary support reserved installation hole position [3] | 8EA M6 screw holes | |
Follow function [4] | 8EA 8-M8EQS | |
Jacking assembly top plate reserved hole position [5] | 2 groups of M6 threaded holes | |
Accuracy Description | Allowable speed rpm | 3000 |
Repeatable positioning accuracy (theory) | ±1° |
[1]. Installation of bolts from the bottom up.
[2].The bolt is not convenient to install from the bottom up.
[3]. There is a cylindrical space of φ150 in the middle of the jacking assembly, and 8 M6 threaded holes are reserved in the middle of the slewing support. If you want to add QR code camera or other sensors, you can use the bracket to fix them on the 8 M6 threaded holes reserved for the rotary support, and the specific dimension is shown as picture 1.
